The Ecton field trials have finally started!

The beginning of the Ecton trials marks the fourth time that the UNEXMIN team will be on the field with the UX-1 robots to explore Europe’s flooded mines. At Ecton, the UNEXMIN team aims at exploring and mapping the entire flooded part of the underground mine workings with its innovative system. The UX-1 robots will be able to show light on the status and layout of a mine that no one has seen for more than 160 years! The Ecton field trials run from the 13th to the 31st of May.

Before the actual field trials, preparatory workings were held last week in order to guarantee that the Ecton trials go as smooth as possible. With all the practicalities set up, the UNEXMIN technical teams – TUT, UPM, INESC TEC, RCI and UNIM – are now ready to have the UX-1 system to recover geological, mineralogical and spatial information from deep Ecton during the next three weeks. Together with the technical teams a group of geological experts from the project will give specific input to geological and mineralogical identification.

The Ecton Mine Education Trust, partners in UNEXMIN and representing an important spectra of stakeholders – the cultural heritage side -, are collaborating with the other partners to assure that the trials are a success. With the data collected by the UX-1 technology, EMET expects to gain knowledge and uncover a precious part of the mine’s past in the form of its long-lost mining heritage (such as mining instruments used in the past). EMET, with the help of UNEXMIN, can then use these data for education and cultural purposes, benefiting the society at large. Achieving this will also prove the operability of the UX-1 technology in very challenging conditions and, at the same time, its usefulness.

Ecton will be the home of UNEXMIN for the rest of May. The team will work hard to have its robotic system explore and map all the flooded tunnels and galleries of this mine, attempting an increadibly challenging task. Fingers crossed!

Follow @UNEXMIN on our social media channels to keep up with the most recent news on the Ecton field trials: FacebookTwitter and LinkedIn.

Preparations for the Ecton trial are on the way

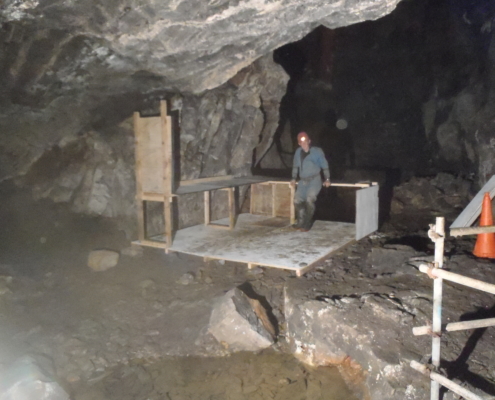

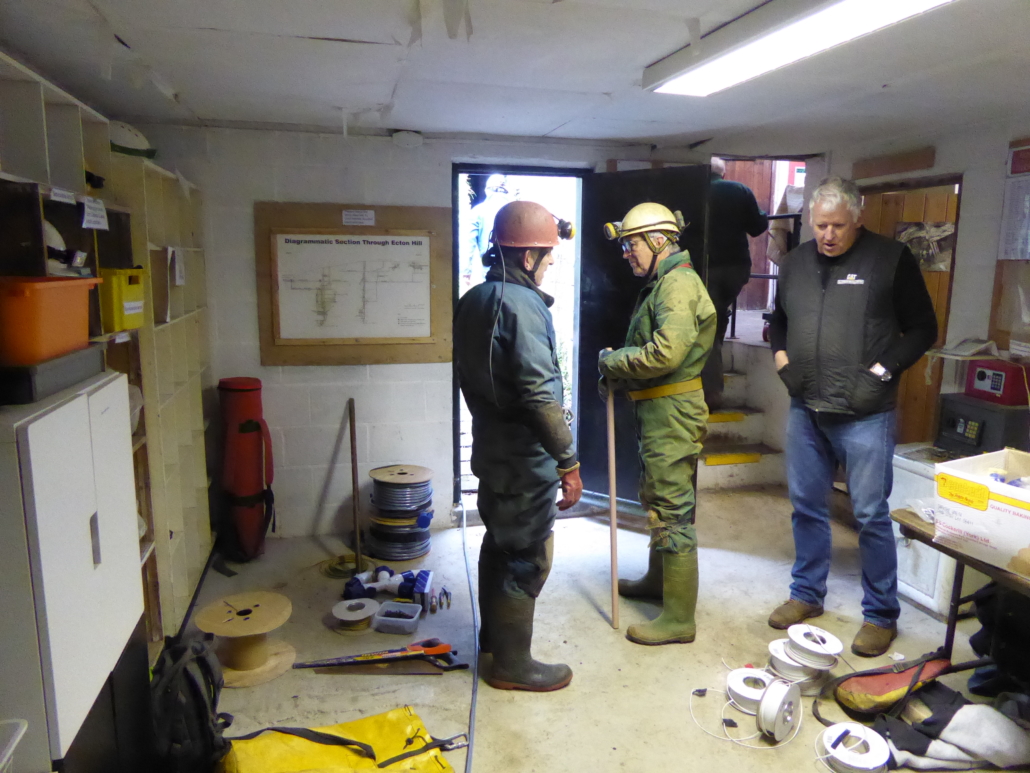

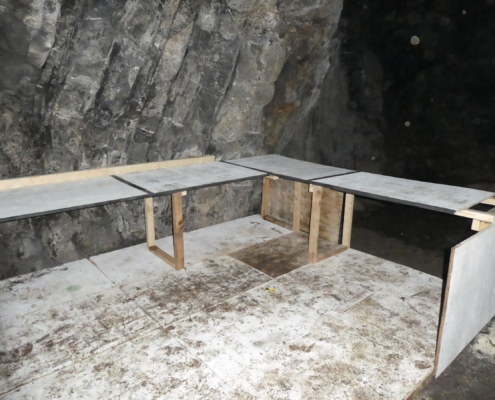

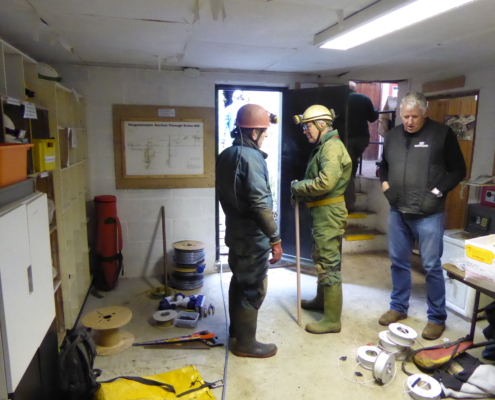

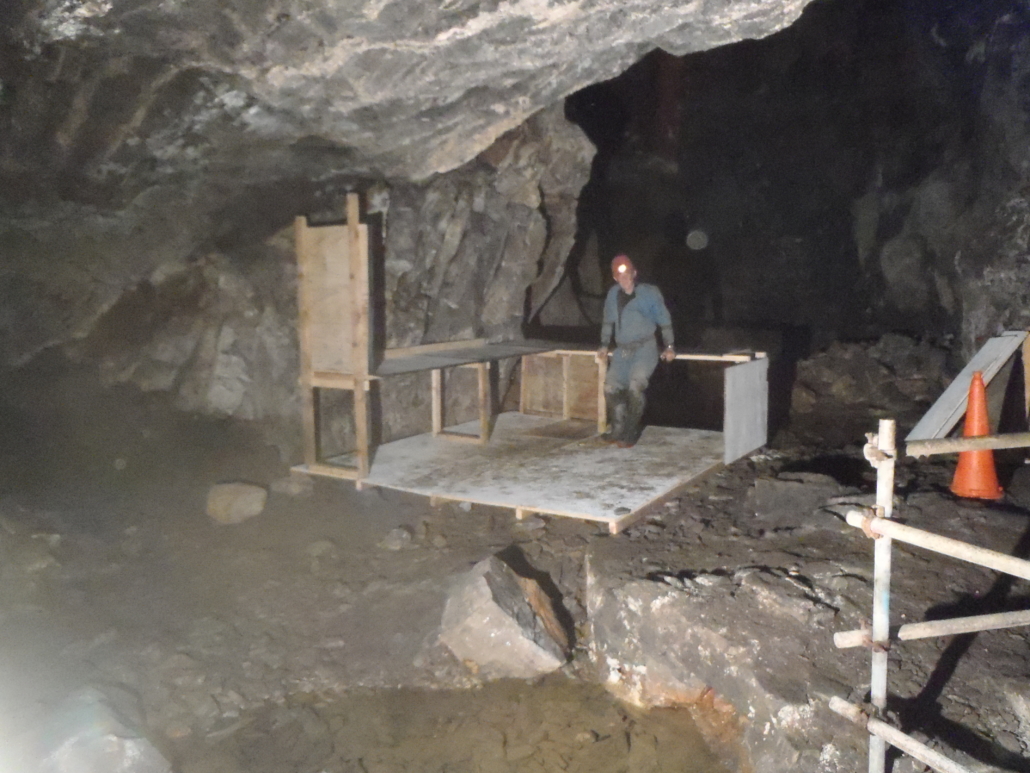

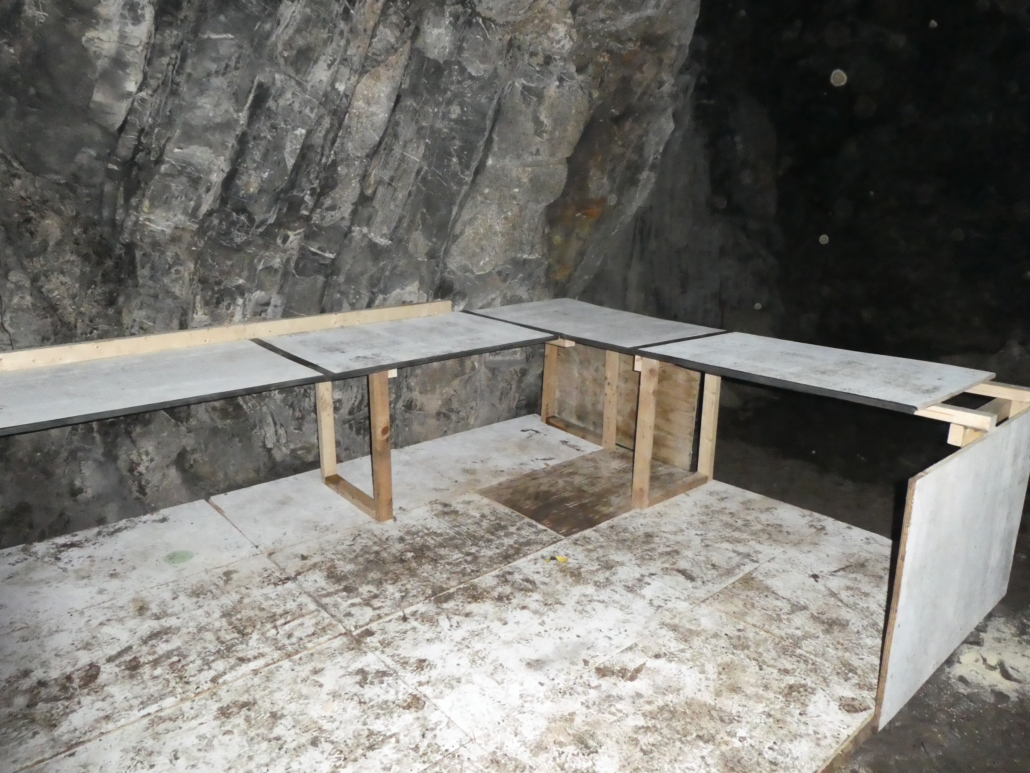

The UNEXMIN team, ahead of the official start of the 4th field trial, at the Ecton mine, in the UK, have just started with the preliminary preparations to host the most challenging surveying case within the project. These workings are needed in order to guarantee easy accessibility and operation of the robotic system and the UNEXMIN personnel during the trials, both inside and outside the mine. These include power cable installlation, telephone links from the surface to the mine’s interior, a comfort cabin and storage containers. The control cabin, from where the UNEXMIN team monitor operations, will also be set on site. Together with practical preparations, the team is also ensuring that all the must health and safety procedures are followed.

The preparatory workings will run until the 10th of May, with the actual field trials starting out on the 13th. The UNEXMIN project will count with most of its robotic system’s technology developers during the Ecton trials, with some of them (TUT, INESC TEC and UNIM) already on their way to the UK.

The main aim of the trials at the Ecton underground mine is to explore and map the entire flooded section with the UX-1 robotic system that nobody has seen for more than 160 years, after the mine closed and got flooded. The UNEXMIN technology will be able to collect and bring valuable geoscientific and spatial data that can be used by the local stakeholders – the Ecton Mine Educational Trust – for cultural and educational purposes. Surveying the entire flooded sections of the mine will, ultimately, prove the operability of the UX-1 system, in very challenging conditions – big extensions, great depths and difficult to navigate layouts.

Follow @UNEXMIN on our social media channels to keep up with the most recent news on the Ecton field trials: FacebookTwitter and LinkedIn.

Second week of field work and major achievements at the Urgeiriça mine, Portugal

The second half of the UNEXMIN’s field tests at the Urgeiriça underground flooded mine happened between the 1st and 7th of April, in Portugal, following the first two weeks of trials. For this second half of testing the team brought together both UX-1a and UX-1b to be tested in the waters of Urgeiriça. The highlights of this second half are:

  • 1st of April (Monday): The UNEXMIN team tested the UX-1a in the Lab test tank in the morning and packed both UX-1a and UX-1b robots and the needed equipment for the Urgeiriça trials in the afternoon. The team arrived at the Urgeiriça mine site around 20h00.
  • 2nd of April (Tuesday): The equipment was unpacked, the control room set-up and fiber optic communication with the shaft switch was tested. A field laboratory was also installed with all the required equipment in the control room, to assemble the UX-1 robots. In the afternoon, after all the basic tests/checks, the first dive was done with UX-1a. The main goal of this first dive was to map the vertical shaft with the robot facing the shaft itself, i.e., pitch down and pitch up. The maximum depth reached was 27m below the surface. Up to 20 meters deep the visibility was disturbed by the bubbles accumulated in the dome glasses of the cameras, which also disturbed the DVL and, consequently, the robot’s navigation. After 20m depth the visibility was good and the water clear.
  • 3rd of April (Wednesday): The robot’s weight was calibrated in water to have a better Roll when pitching Up and Down. A mapping dive was made on the central shaft up to 46.5m where all SLSs (Structured Light Systems) were tested with the robot in pitch down and pitch up positions. The construction of real-time maps using the “octomap” technique was also tested successfully.
  • 4th of April (Thursday): Open day to media and the general population at the trial site. Two national television stations (SIC, RTP) were present at the testing site. Norbert Zajzon (project coordinator; UNIM) and Alfredo Martins (INESC TEC) were interviewed by the television stations, which showed a lot of interest in the project.
    During this day two dives were made, one in the morning and the other in the afternoon. The morning dive was to the first level (22m below the surface) that served as a demonstration to the media and also to validate the mapping with all the sensors. At the entrance of this level a possible uranium rock was visually identified by Janos Horvath (Geo-Montan), proving the usefulness of the UNEXMIN technology to geologists and alike. In the afternoon dive, the depth of 46.2m was reached. In the ascent to the surface there was a power failure in the robot. UX-1 was successfully recovered due to the safe mechanisms applied by the UNEXMIN team, such as the umbilical cord that links the robot to a power source.
  • 5th of April (Friday): “Exame informática”, a Portuguese technology focused magazine, made a one-day mission coverage of the UNEXMIN project. Two dives were performed, one in the morning and the other by the end of the day. The morning dive served to validate the correct functioning of the robot after the corrections of the problems from the previous day. The end-of-the-day dive served to validate the real-time mapping with SLS and Multibeam sensors, where the robot reached a depth of 58m. After the dive, and taking advantage of the fact that there was no sunlight, the team tested the LEDs’ UV-light with the minerals example, in order to calibrate the triggering time of the LEDs and their intensity to facilitate identification of minerals.
  • 6th of April (Saturday): Two dives were performed, one up to 68m in the morning and another until the maximum depth reached, as of today, by the UX-1 robot: 106.5m! In the afternoon dive it was possible to obtain multispectral images in the 3rd level of rocky areas of interest. It was also possible to enter the gallery up to 9 meters and build the 3D map of it.
  • 7th of April (Sunday): Packing and cleaning the site.

The field trials at the Urgeiriça flooded mine site were completed successfully with a great effort made by the UNEXMIN’s technical teams. Together with the help from the local stakeholders (EDM), the elapsing of the trial – on both the first and second halves – went very well. From this long but fruitful trial, the major take-outs are:

  1. The first two robots, UX-1a and UX-1b, were for the fist time working together on the field
  2. The biggest dive with a UX-1 robot was reached – 106.5m
  3. Scientific instrumentation was tested successfully – UV light, water sampler and others
  4. Navigation and movement within the application environment saw improvements – moving pitch down and pitch up inside the shafts
  5. Good coverage and dissemination of the UNEXMIN project’s activities to the local and national media in Portugal.

The UNEXMIN partners will now continue with the project’s development – which includes the development of the third robot, UX-1c – and make preparations for the next field trial in the Ecton mine, UK.

First week of field work at the Urgeiriça mine, Portugal

The UNEXMIN team is currently testing its innovative exploration solution in Portugal, at the closed and flooded underground Urgeiriça mine. The Urgeiriça field trials are divided in two sets of testing, with a period of laboratory work in between at INESC TEC. The first part has just ended and the first results are coming in:

  • 6th of March (Wednesday): The UNEXMIN team tested and packed the UX-1a robot and the needed equipment for the Urgeirica trials and travelled to the test site from Porto.
  • 7th of March (Thursday): The setup of the control room, launch site and the necessary communications went quickly as the Urgeiriça mine site had the appropriate infrastructures already in place. The first dive of the UX-1a robot was done on the afternoon of this same day, right after the team had received the necessary safety instructions from the Health and Safety body. The water table was ca. 7 m below the surface level in the shaft where the robot dived.
  • 9th of March (Saturday): The robot went down to 54m water depth (2nd level, 60m below surface level).
  • 11th (Monday) to 14th of March (Thursday): The UX-1a robot explored the shaft down to 104m water depth (4th level, 110 m bsl.). The entrances of the first four levels were mapped (1st level is at 30 m, 2nd at60 m, 3rd at 85 m and the 4th at 110m, below sea level).
    • The entrance chamber of the 1st level was partially collapsed, with lots of rocks, wood logs and metal pipes, so only a few metres were investigated not to risk the robot. The 2nd level is collapsed after few metres so it could not be searched. The 3rd level was in good condition, so this level was used in multiple test dives to test and develop the instruments. The visibility of the water in the mine was very good, and even with the sediment disturbed by the robot it sank quickly as it was in the sand-coarse size fraction.  The whole surface of the shaft was covered with wood, except the horizontal levels. The granite wall with black veins at the entrance of the 3rd level was recorded by the multispectral camera also. The γ-ray counter of the UX-1b was separately tested down to the 2nd level, lowered down in a cable parallel to another developed underwater γ-ray counter for cross validation.
  • 15th of March (Friday): The last dive was performed in the afternoon. After that, the control room and the site were partially disassembled until the second part of the field trials, from 1st of April onwards. The UNEXMIN team travelled back to Porto to INESC TEC’s laboratory and packed out the field equipment to continue testing and instrument calibration within the testing pool.

The first part of the Urgeiriça field trials went as expected: the UX-1a robot was further tested; instruments were working correctly; the robot as a whole performed its functions and managed to explore, map and gather information on some of the flooded areas of the Urgeiriça mine. These data will help the team to develop 3D maps and other visualisation tools of interest.

Now it is time for the team to proceed with the development of the UX-1b robot. This second robot, that will carry some other scientific equiment than its counterpart UX-1a, will be tested on the field during the second phase of the Urgeiriça field trials. It will collect some different data that will complement data gathered by UX-1a.

Back to the lab and then to the field again!

Follow @UNEXMIN on our social media channels to keep up with the most recent news on the Urgeiriça field trials: FacebookTwitter and LinkedIn.

The field trials at the Urgeiriça flooded mine, in Portugal, have finally started!

The third set of UNEXMIN’s field trials is now ongoing. After the two previous trials a lot of revisions and improvements were made to both the UX-1 robot both on hardware and soft aspects. The technical teams that operate the robotic system also gained important knowledge with the previous “experiments”. The second UX-1 robot is currently being assembled in INESC TEC’s laboratory, and both robots will take part in exploring and mapping the Urgeiriça mine flooded shafts from now until April.

Brief description of the mine

The Urgeiriça Mine, located in the Viseu district, center of Portugal, was once considered one of the most important deposits in Europe due to the exploitation of its strategic commodities: radium (from 1913 until 1944) and uranium (from 1944 until 1991). In 1967 the mine reached the maximum depth of approximately 500 metres below ground The mine seized its operation in 1991.

Urgeiriça’s mission objectives are the following:

  • Continue testing capabilities, autonomy and scientific instrument array of the prototype robot UX-1a in a uranium mine in Portugal under different challenging conditions
  • Test the functionality of the second prototype UX-1b in a realistic mining environment.
  • Trial simultaneous dives of both robot in a realistic mining environment
  • Provide information on the status of the flooded mine infrastructure, i.e. main galleries and shafts

First images of the UNEXMIN team on the field:

Follow @UNEXMIN on our social media channels to keep up with the most recent news on the Urgeiriça field trials: FacebookTwitter and LinkedIn.
